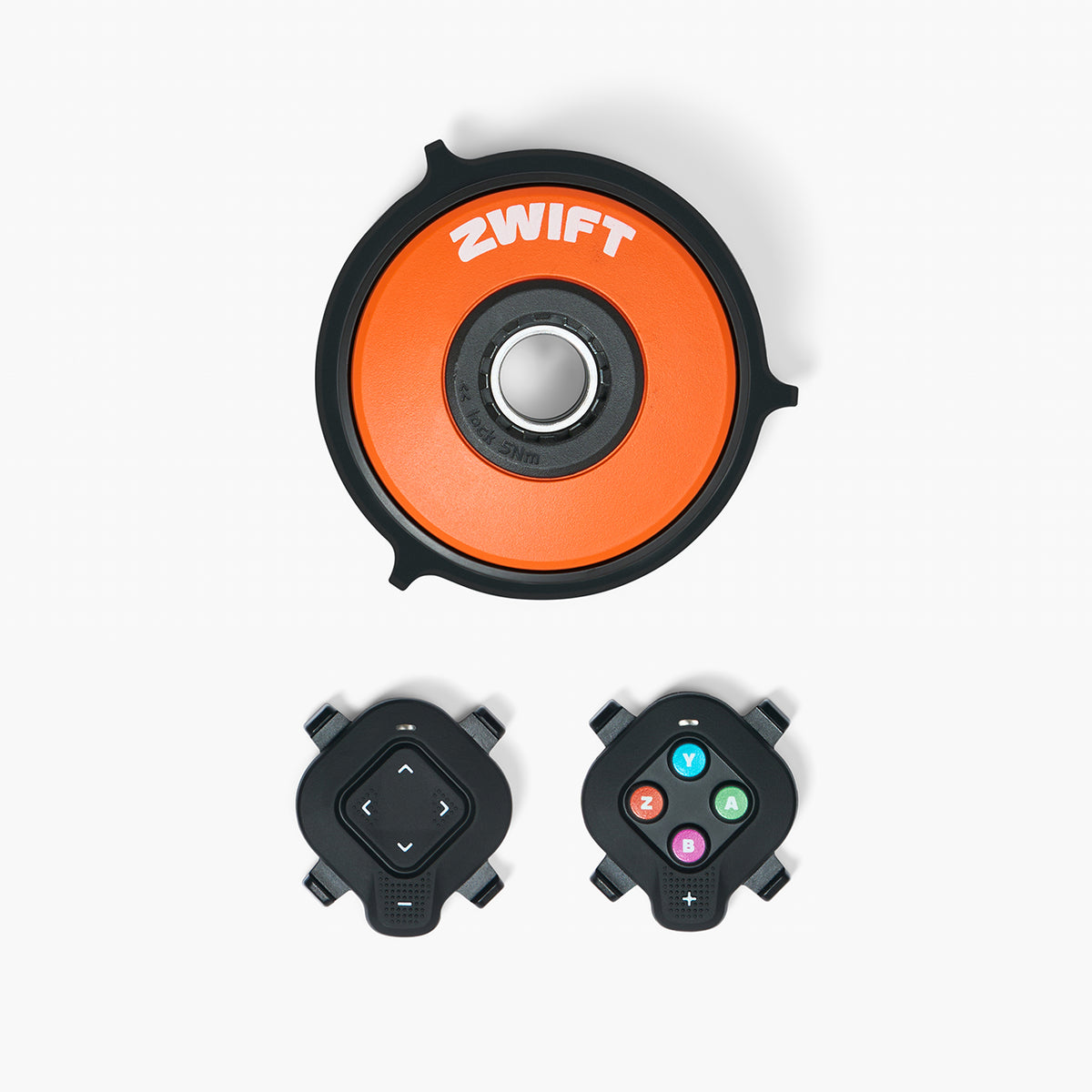

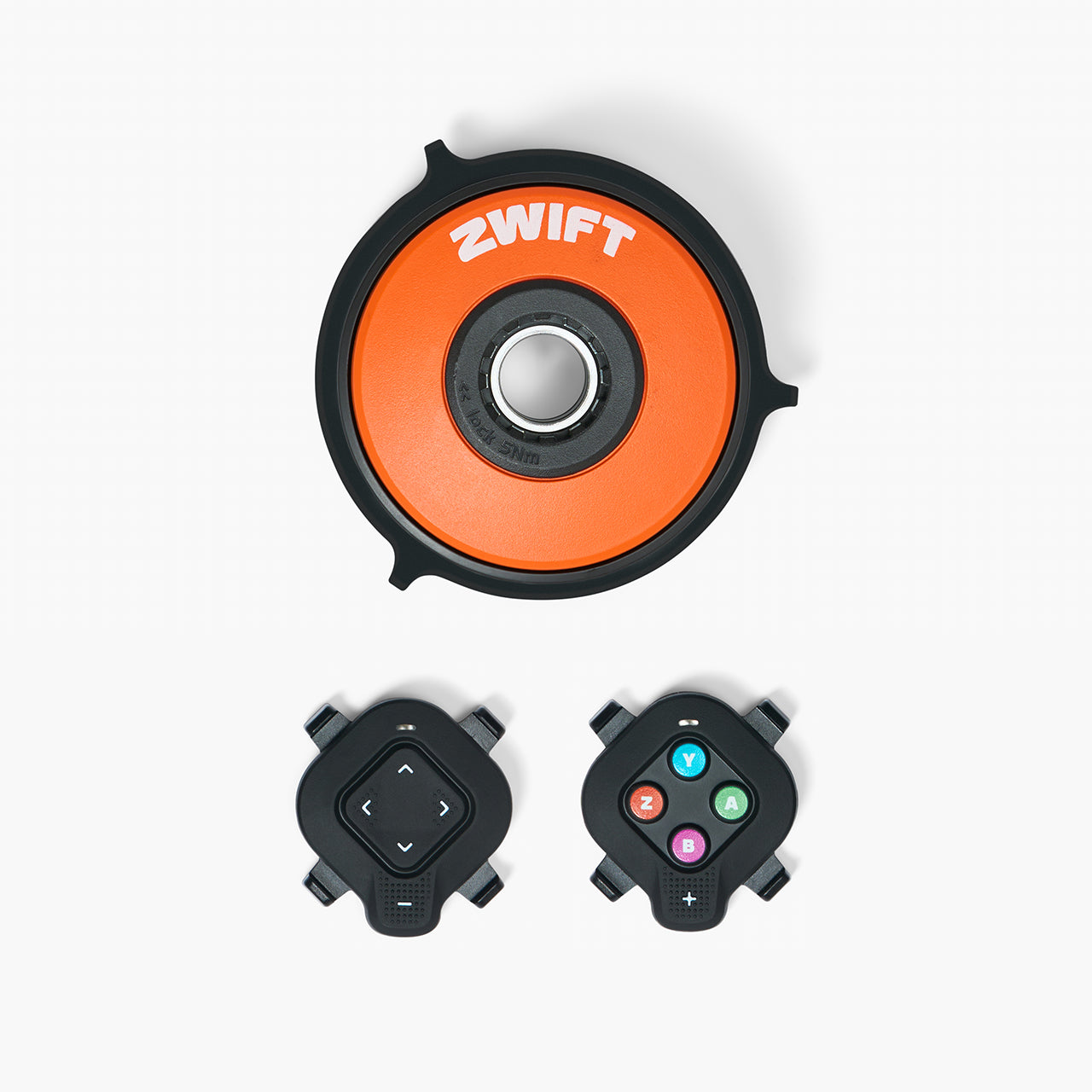

Zwift Cog and Click Upgrade Kit

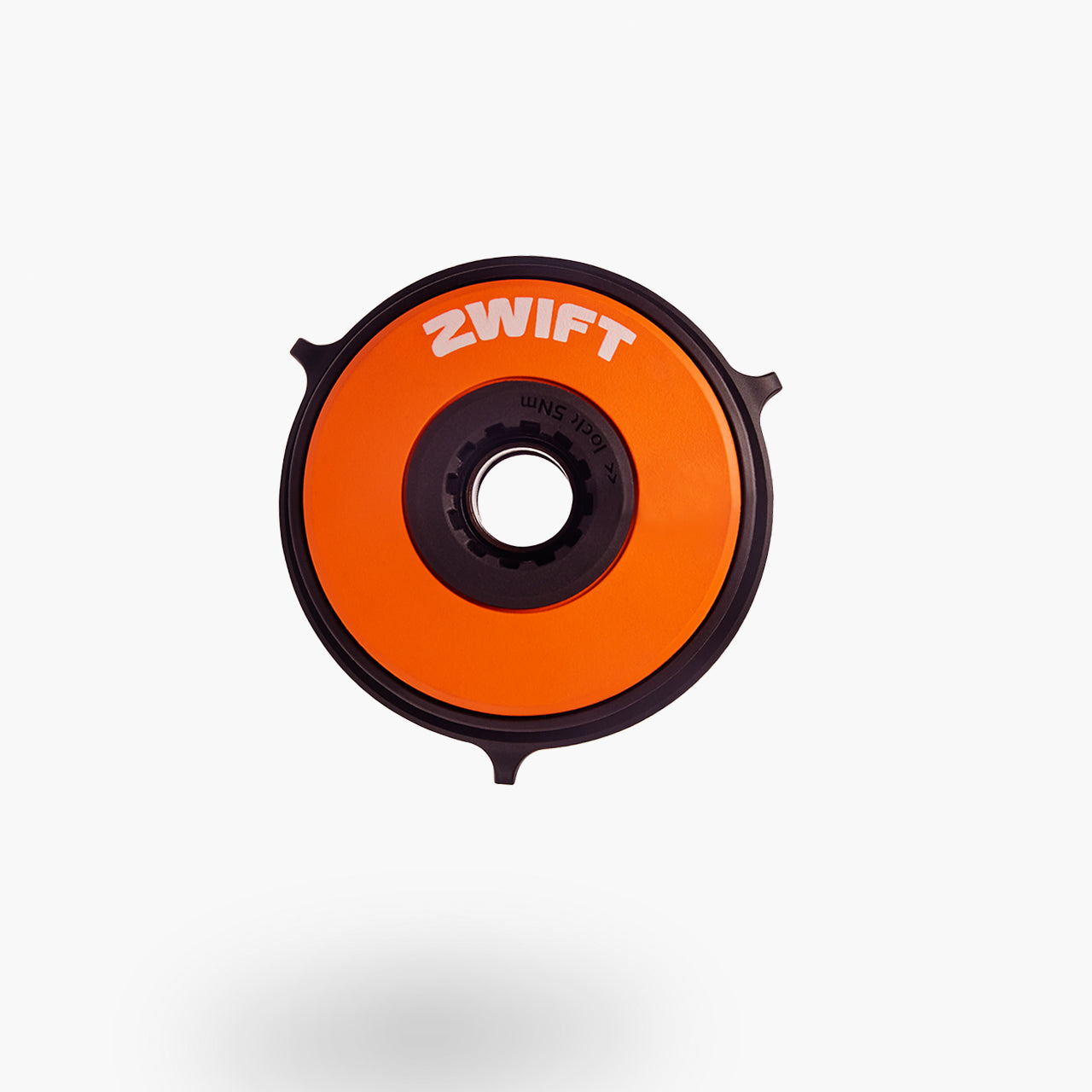

Zwift Cog
Our second-generation Zwift Cog is available in two options: the Multi-Trainer Cog or the Elite Cog.

• The Multi-Trainer Cog is compatible with Wahoo, Zwift Hub, JetBlack, and Van Rysel smart trainers.

• The Elite Cog is designed specifically for use with Elite smart trainers.

Check the full compatibility list here.

Experience compatibility with almost any 8-12-speed bike and enjoy the ease of virtual shifting. Zwift Cog even comes with a chain guard for mess and maintenance-free riding, keeping your drivetrain smooth and secure.

Multi-Trainer Cog
Designed for broad compatibility, the Multi-Trainer Cog works with Wahoo, Zwift Hub, JetBlack, and Van Rysel smart trainers. It comes pre-installed on a new freehub, making setup fast and hassle-free.

Elite Cog
The Elite Cog is the perfect choice for Elite smart trainers. With a quick cassette swap using a chain whip and lockring tool, you can easily install your new Zwift Cog to your existing freehub and get riding in no time.

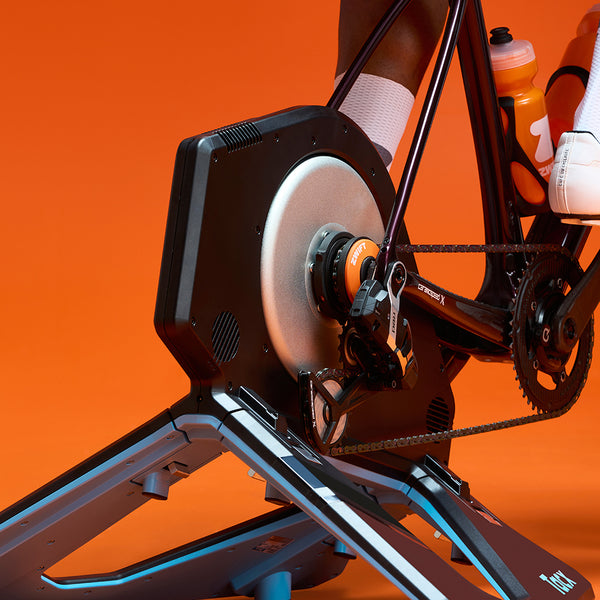

Check here to see if your smart trainer is compatible with Zwift Cog.

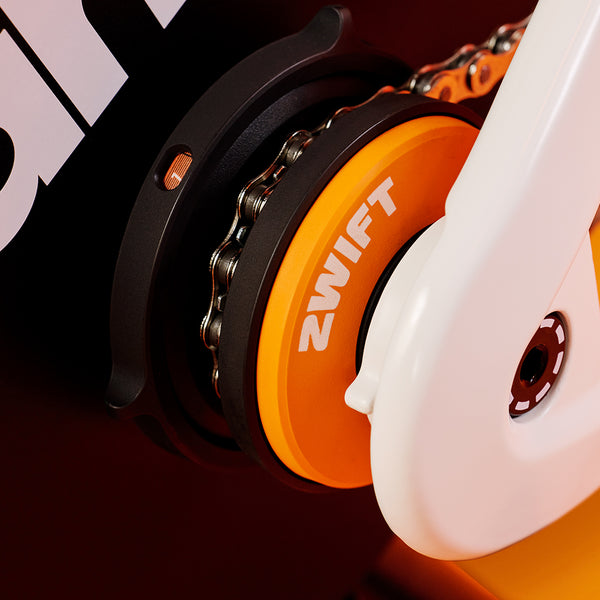

Adjustable Sprocket Positioning
Zwift Cog v2 offers adjustable sprocket alignment for wider bike compatibility and optimal chain positioning.The anti-chain drop housing ensures secure rides, while compatibility with 8-12 speed drivetrains expands your options. Finished in Zwift’s signature orange, it adds style to your setup.

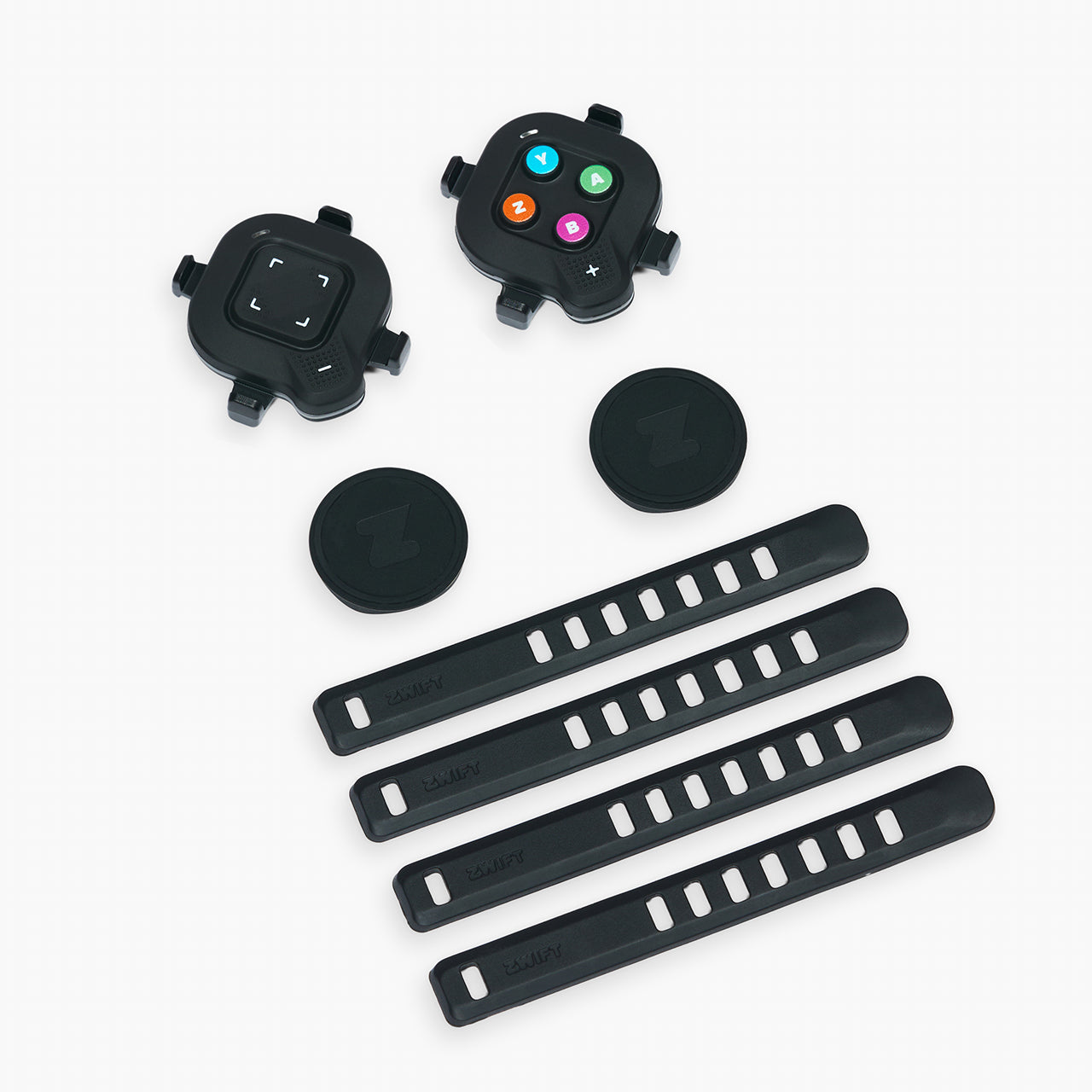

Zwift Click

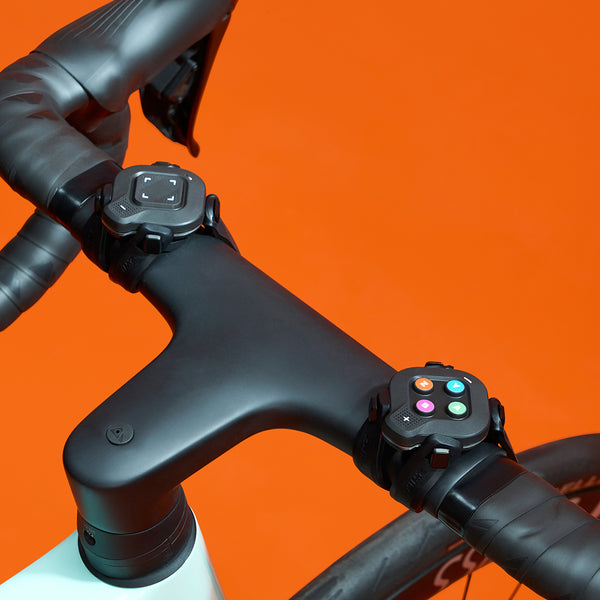

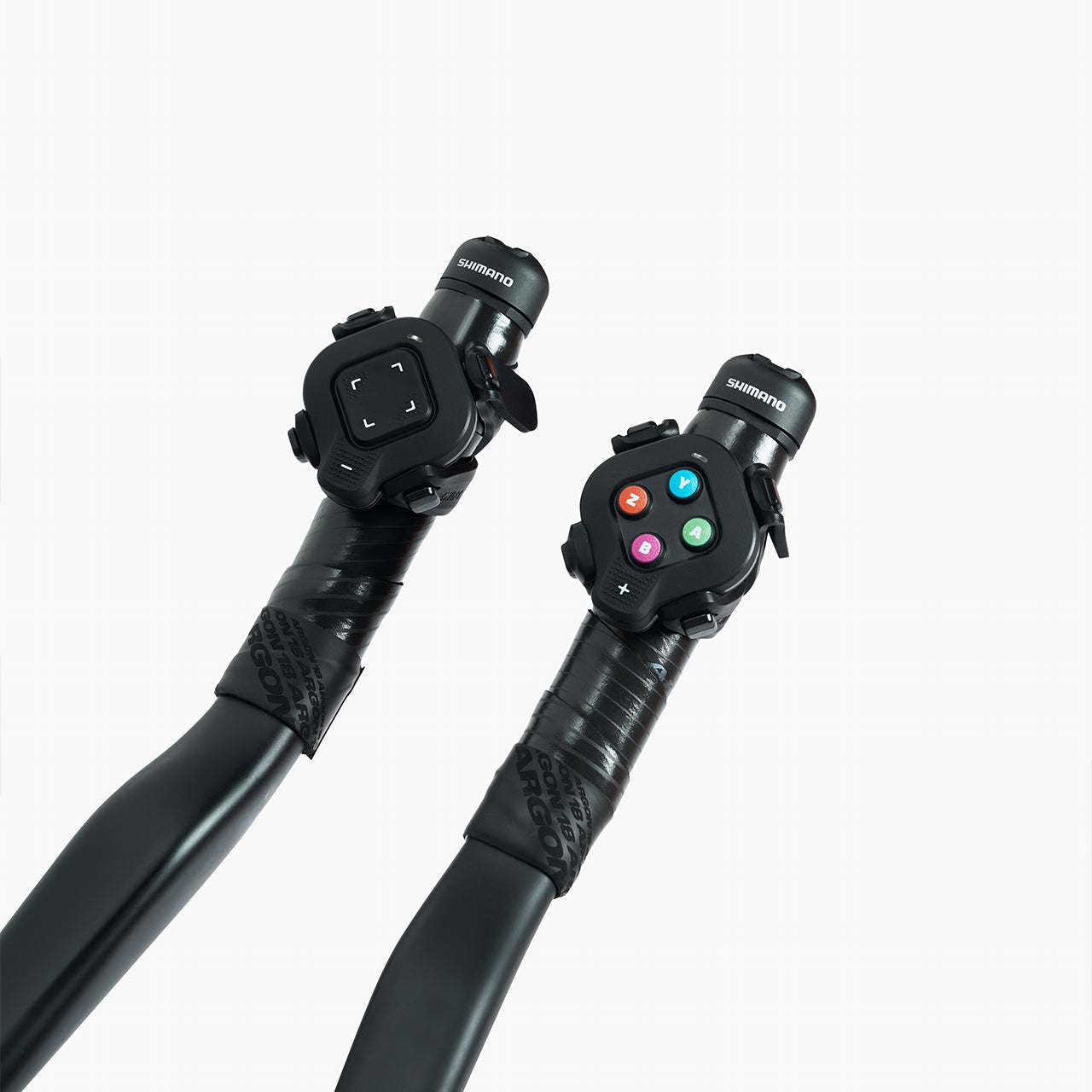

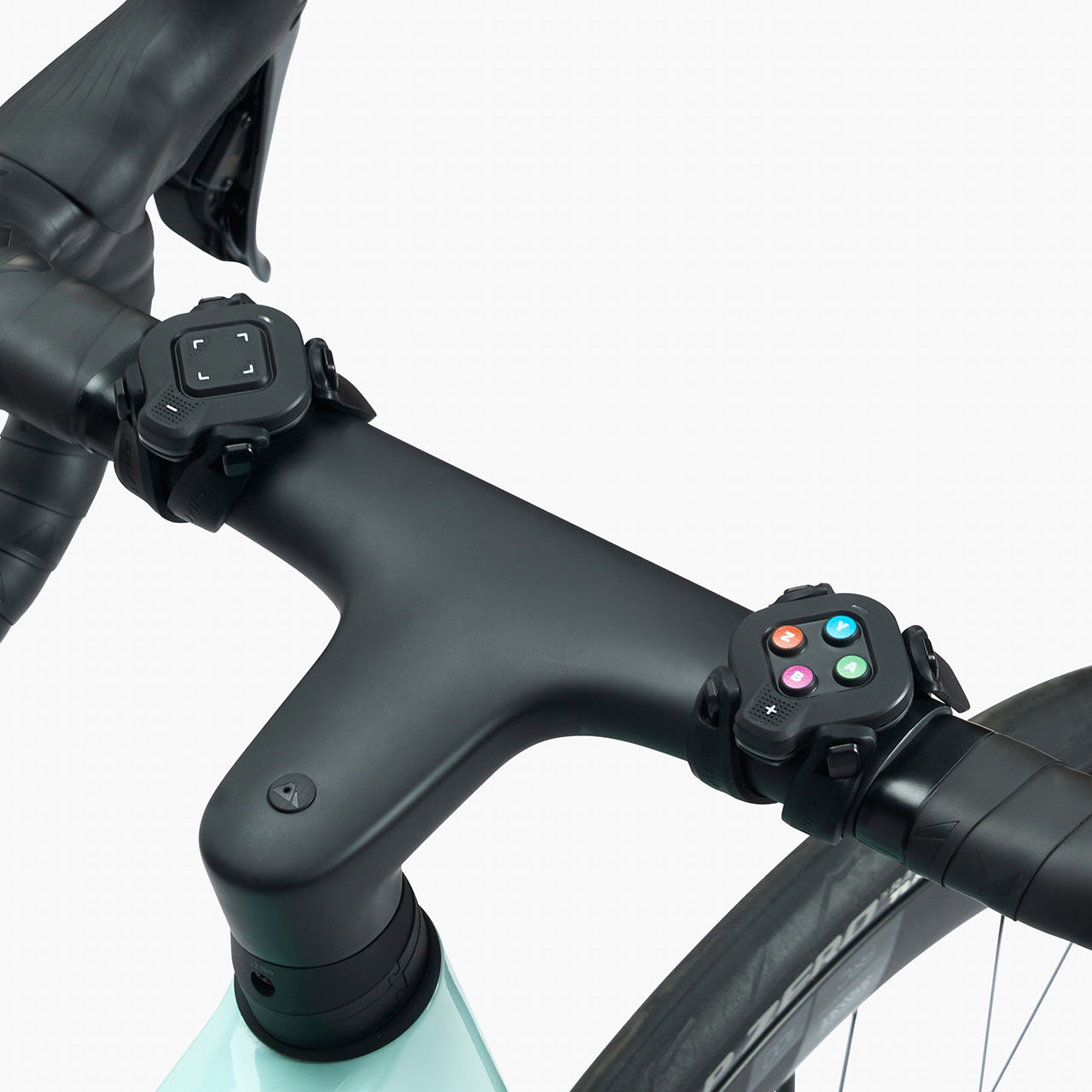

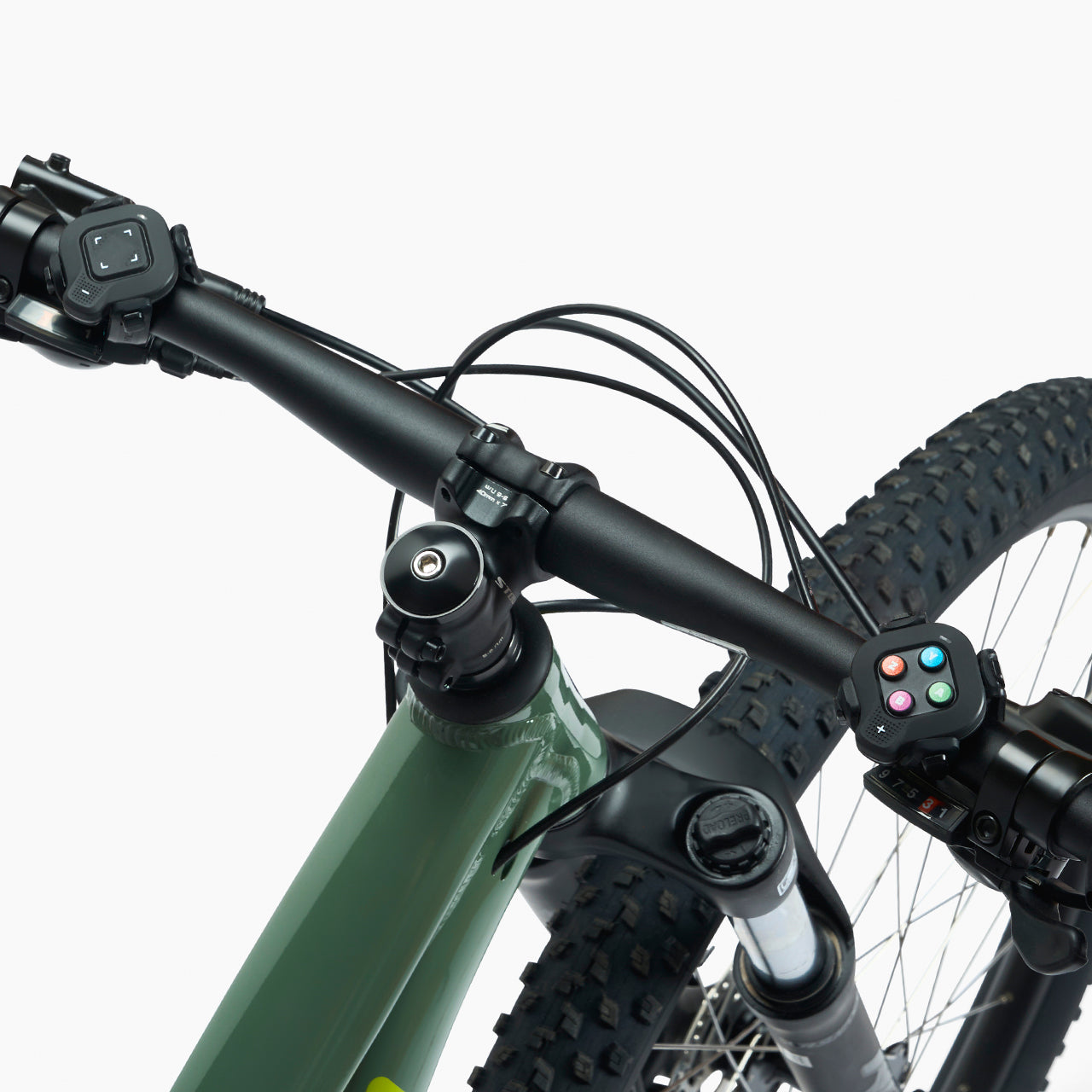

Take control of your ride with wireless, virtual gear shifting through Zwift Click. Easily mount it wherever you prefer—on drop bars, flat bars, or aero bars—and enjoy shifting control right where you need it.

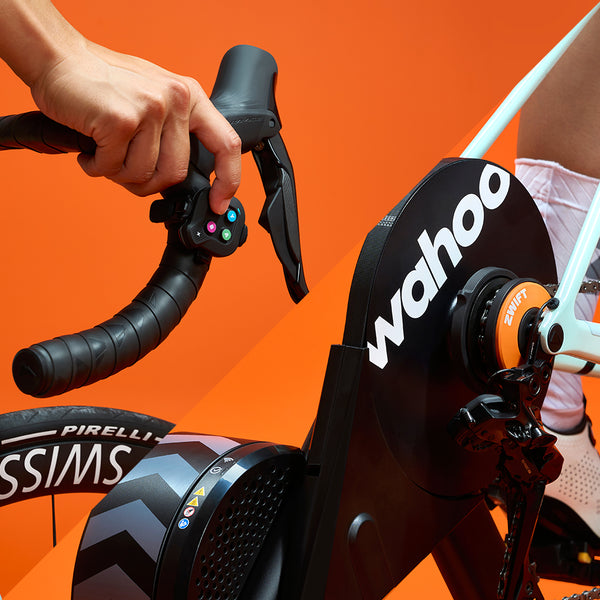

Virtual Gears
Conquer any terrain with a full range of 24 silent and instant virtual gears. Whether you're spinning up climbs or flying down descents, virtual shifting adjusts trainer resistance to perfectly emulate a real gear shift, all triggered by your Zwift Click or Zwift Play controller.

Zwift Play Compatible
Elevate your Zwift experience by pairing Zwift Play wireless controllers with Zwift Cog. Unlock the ability to navigate menus, steer, brake, and shift gears—all from the convenience of your handlebars.

Note: Zwift Play is sold separately.

Follow these steps for a hassle-free upgrade to Zwift Cog on your compatible smart trainer. Additional guidance on setting up your Zwift Cog can be found here.

Multi-Trainer Cog
Comes pre-assembled to a new freehub for easy installation

• First, use the tool provided to remove the existing drive-side axle adapter.
• Then, smoothly slide off both the cassette and freehub body from the axle.
• Make sure to remove the spacer from the axle as well.
• Slide the large spacer onto the axle included in your Zwift Cog box.
• Zwift Cog v2 comes preinstalled on a new multi-trainer freehub.
• Slide on the Zwift Cog, and if you are using a Zwift Hub, tighten the axle adapter.
• If you are using another Zwift Ready trainer, slide the thin spacer onto the axle before and then tighten the axle adapter.
• Mount your frame and hit the virtual road.
• Zwift Click includes a replaceable CR2032 coin cell battery. The minimum lifespan before replacing is 50 hours.

Elite Cog
Designed for compatible Elite smart trainers; does not include a freehub

• First, use a cassette whip and lockring tool to loosen the lockring of your cassette.
• Then, slide the cassette off the freehub, making sure you have all the parts including any spacers.
• Now, take the Zwift Cog and remove the cardboard backing.
• Line up the thin spline on the plastic carrier with the thin spline on the freehub and slide the parts on, making sure you have the metal washer in place as the final part.
• Next, take the plastic black lockring and hand tighten with the lockring tool about a quarter turn, or if you have a torque wrench, tighten to 5Nm. Not too tight!
• Lastly, tighten the axle adapter, mount your frame and hit the virtual road.
• Zwift Click includes a replaceable CR2032 coin cell battery. The minimum lifespan before replacing is 50 hours

Zwift Cog v2 Specs

• Multi-Trainer Cog:14-tooth single sprocket
• Elite Cog: 18-tooth single sprocket
• 10 sprocket positions for quick chain alignment
• Designed to fit a Shimano Hyperglide freehub body
• Not Compatible with: Shimano Micro Spline, SRAM XD/XDR, and Campagnolo freehub bodies
• Weight: 140 grams
• Dimensions: 103 mm x 42 mm H
• Product Life: Tested for > 25,000 miles
• Material: Plastic housing and lock ring with steel sprocket
• For use on Direct Drive Indoor trainers only

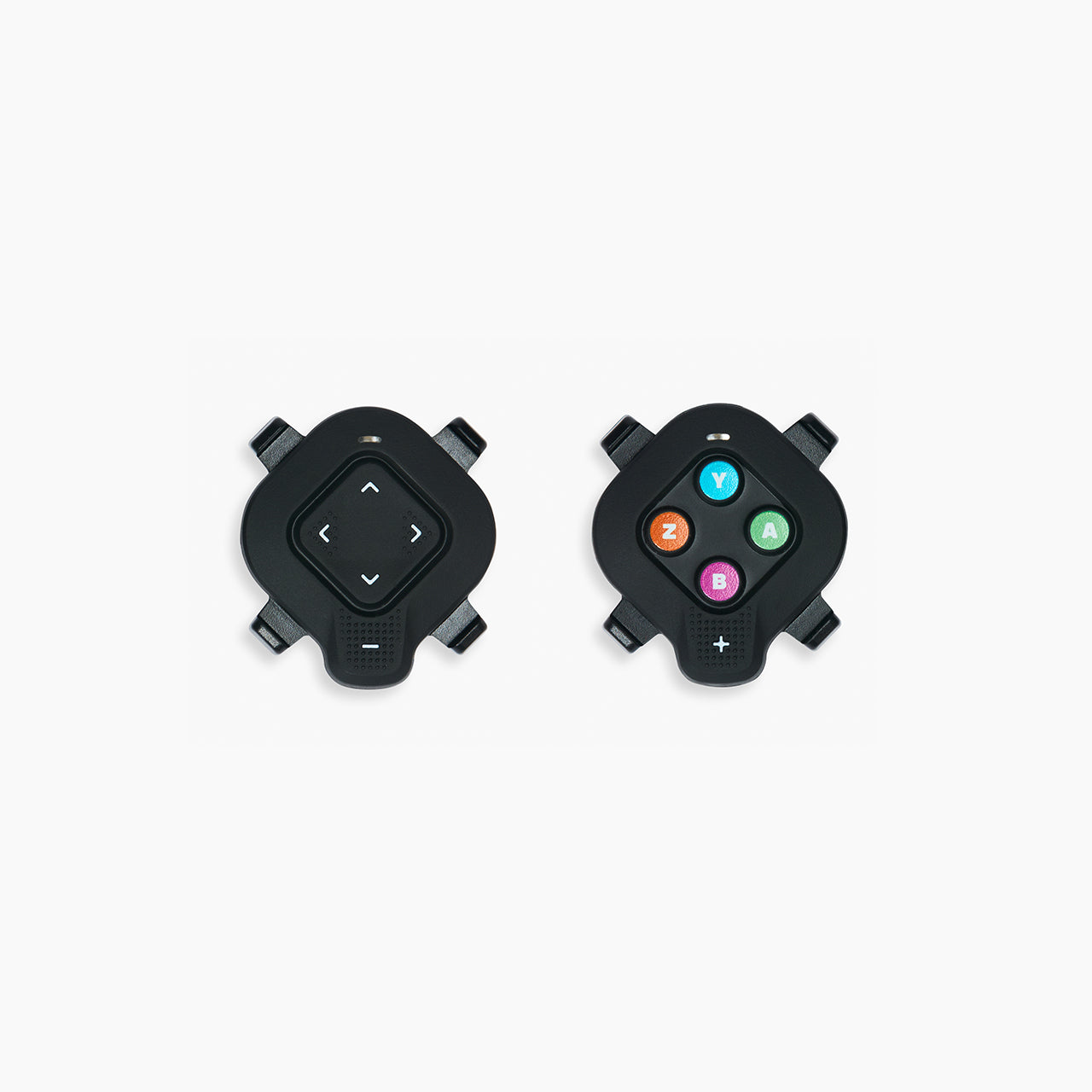

Zwift Click Specs

• Communication: Bluetooth®
• Power: Battery, coin cell CR2032
• Product dimensions: 47 x 47 x 13 mm
• Product weight: 51 grams
• Battery life: > 100 hours
